FainWan Automatic DC 12V-24V 8A Infrared PIR Motion Sensor Switch for LED Light Stylish

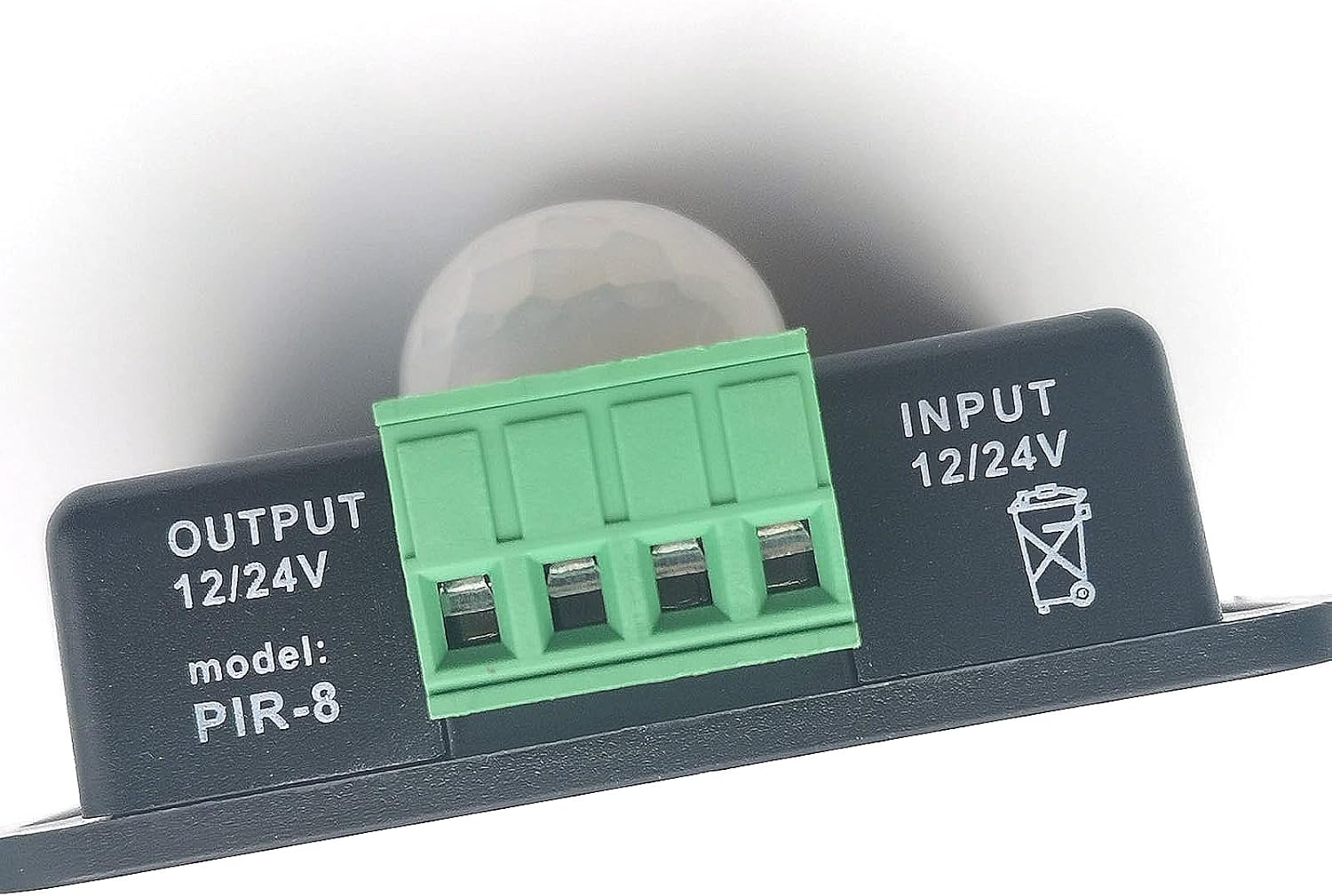

Features Infrared detection controller, adopt infrared detection way to control load switch You can install the human body sensors in the appropriate environment according to actual needs LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet The field of view of the PIR Dome Lens is 60 degrees nominal The switch operates on 12 or 24 volts DC and can switch up to a 6 amp load Specification Item name: body sense infrared led strip controller Power supply voltage: 12-24V Output voltage: 12-24V Max load current: 6A Induction range: 8m Package includes 1pc PIR-8 body sense infrared led strip controller

• Infrared detection controller, adopt infrared detection way to control load switch

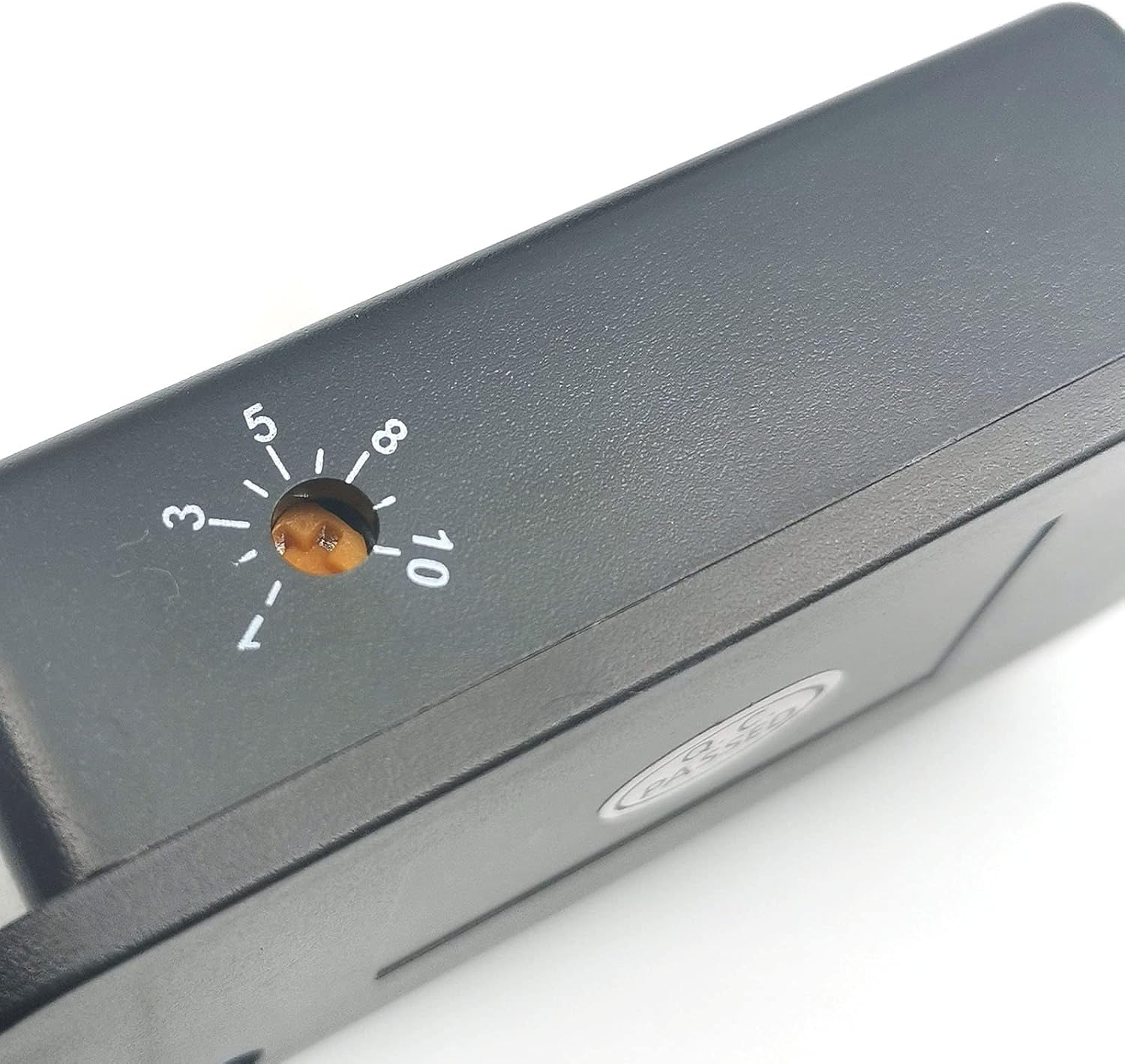

• LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function
• The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased
• PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet

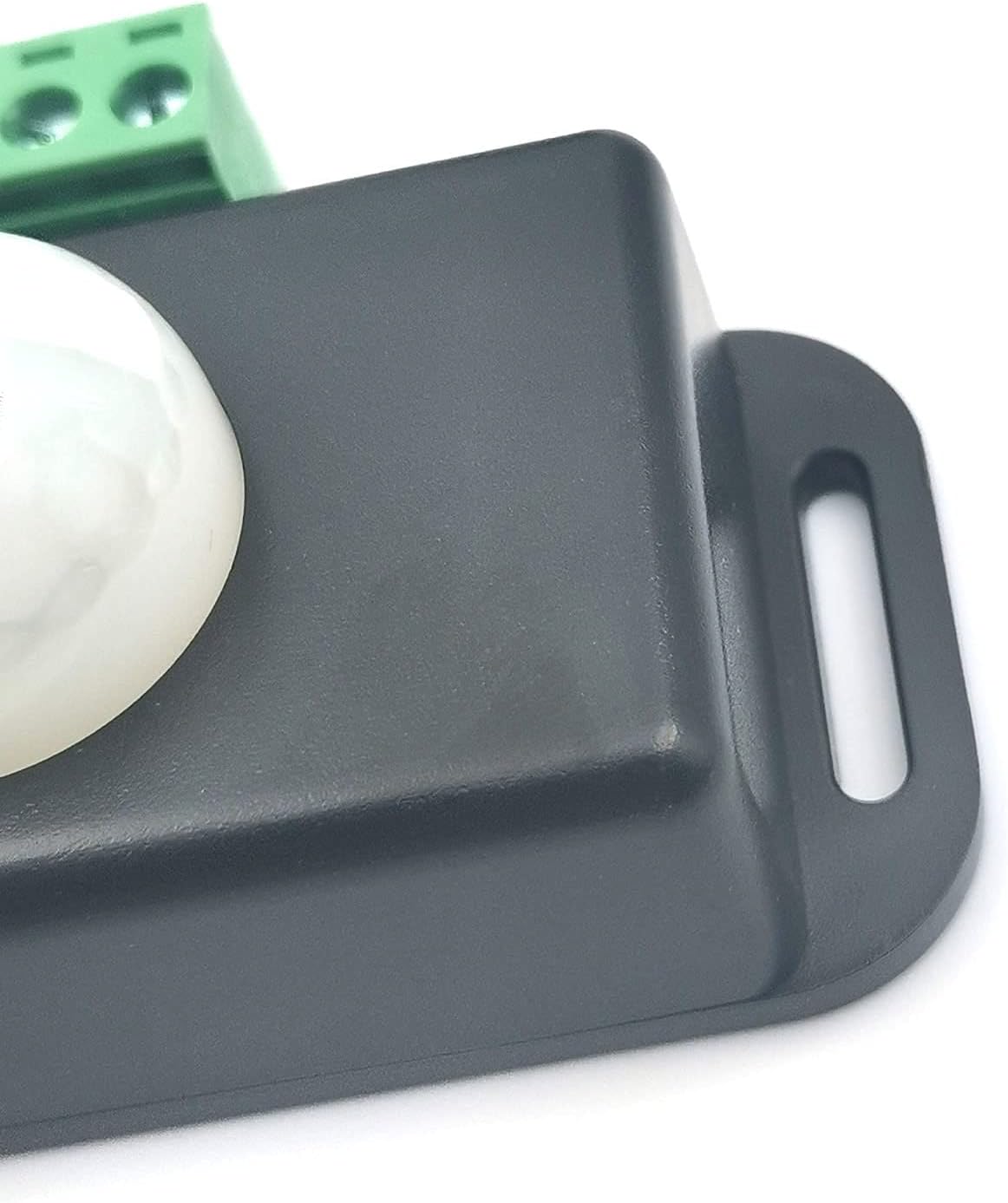

• The field of view of the PIR Dome Lens is 60 degrees nominal
